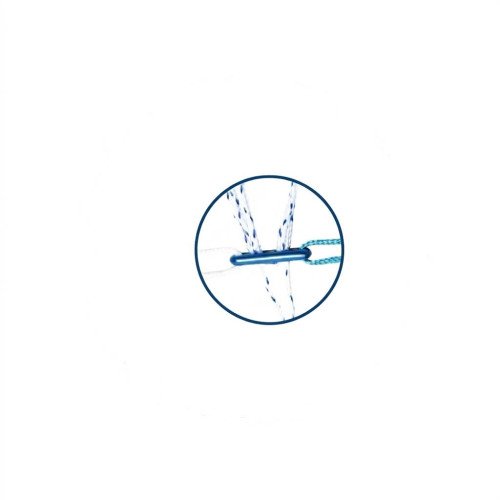

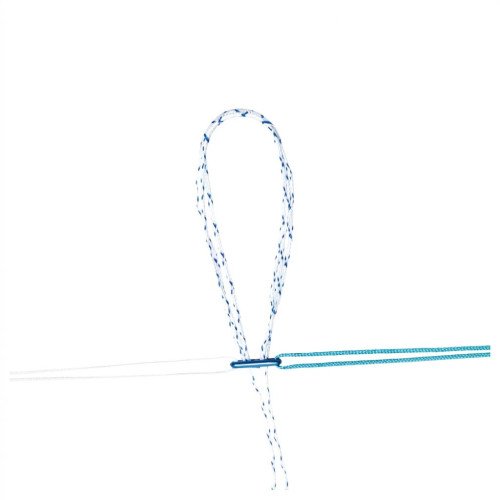

BUTTONFIX® features a 4-point locking mechanism. It offers secure fixation with a single adjustable loop size, universally compatible with any graft length.
-
The graft cradle or support frame safeguards the graft from abrasion and damage, employing a "double locking loop" mechanism that minimizes the force required for reduction and prevents slide-back "post reduction". Adjustable sutures also allow for precise calibration of the loop to its optimal size.
-
Preloaded with braided sutures, the system assists in controlled pulling and flipping. The flipping and pulling suture mechanism offers surgeons precise tactile feedback during the flipping process, utilizing white and green sutures, respectively (both USP 5).
-
With its two-handed operation, proper reduction and counter-tensioning are ensured.
-
The graft support frame not only provides extensive contact with the graft but also shields it from potential damage.
-
BUTTONFIX® allows the surgeon to create a re-tensionable construct.
-
BUTTONFIX® boasts an impressive tensile strength of 1300 N.
-
Backed by over 125,000 cases of clinical success worldwide, it is a clinically proven solution for various orthopedic applications.

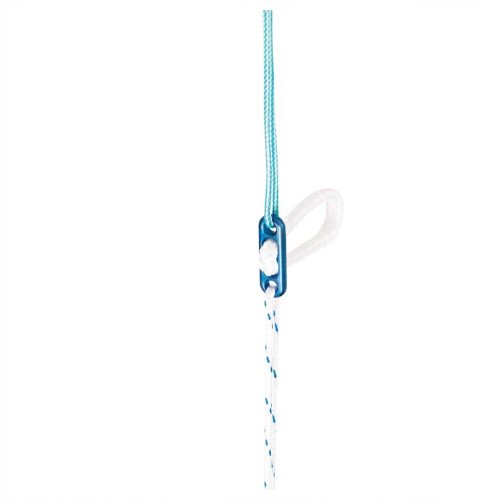

- ONBUTTON CL® Fixation Button with Closed Loop of suture braid eliminates the need for knot tying, allowing a larger portion of the graft to reside securely in the tunnel.
- Efficient and user-friendly, it comes preloaded with braided sutures (#5 BIOFIBER® and white-blue for pulling and #5 polyester, green for flipping), enhancing procedural efficiency.
- Engineered for superior strength, it has been rigorously tested for Ultimate Tensile Strength (UTS), exceeding 2200 N.
- Backed by over 125,000 cases of clinical success worldwide, it is a clinically proven solution for various orthopedic applications.
-

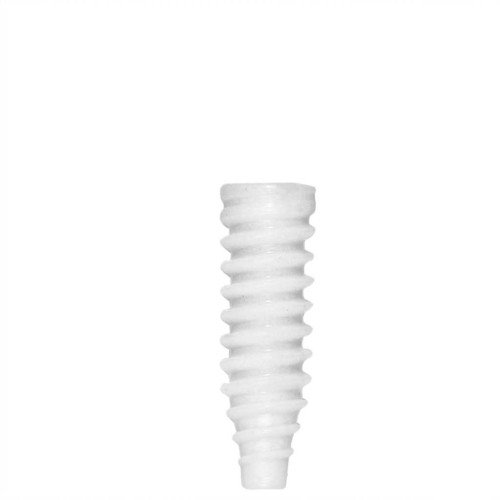

BIOTWIN™ was meticulously engineered to serve two primary objectives: to deliver the required requisite mechanical properties essential for ligament reconstruction while ensuring controlled resorption and osteointegration, supporting the formation of structural bone through hydrolysis.
-
Composed of a 75% PLDLLA and 25% BCP+HA blend, BIOTWIN™ achieves an optimal balance between the mechanical resilience necessary for the indication and the capacity to stimulate bone growth.
-
Each screw diameter is paired with a specific thread to consistently maximize contact between the implant and bone.
-
The smooth thread design minimizes potential damage to ligaments during placement.
-
Featuring a graduated, tapered design, it facilitates easy screw initiation and optimizes torque, enhancing surgical performance.
-
pH Neutral: No reported instances of inflammation or cysts.*
-

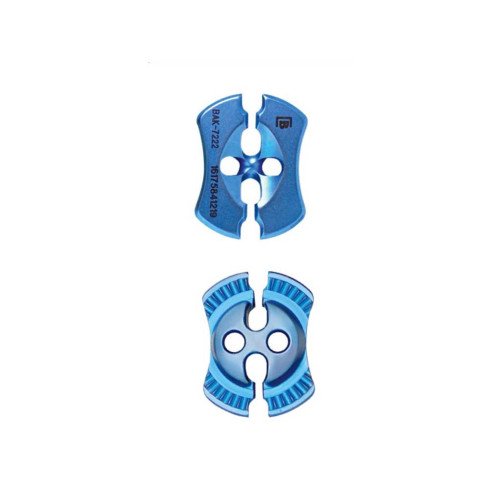

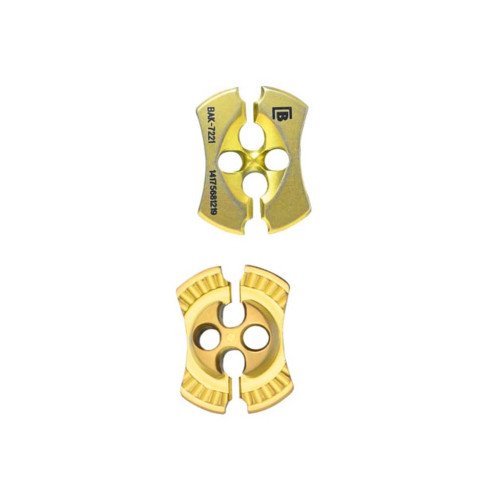

Representing an enhanced iteration of the tibial base plate, this version offers notable improvements.
-
Suitable for tibial fixation in cruciate reconstruction technique, particularly All Inside ACL reconstruction technique.
-
The two cutting edges of the button aid in grasping and twisting to further tension the graft, while serrations on the bottom side ensure secure locking onto the tibial cortex.
-
Available in two sizes: Medium (accommodates tunnel diameters of 7 and 8mm) and Large (fits tunnel diameters of 9, 10, and 11mm).

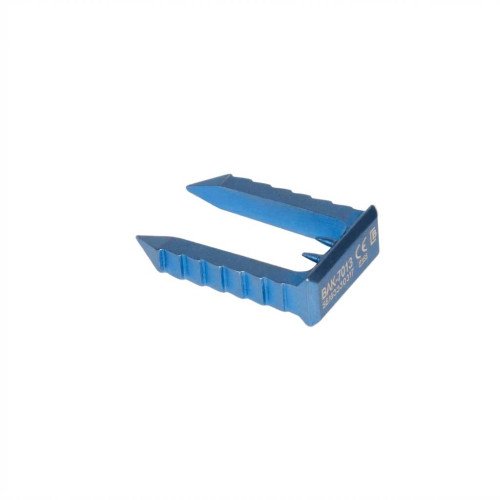

- Offering a straightforward method for tissue-to-bone attachment, the staple fixation system simplifies the process.
- Its low-profile, wide staple base ensures optimal load distribution.
- With a spike-post leg design, uninterrupted vascular flow to the underlying tissue is promoted.
- Sharp leg points facilitate easier penetration into cortical bone.
- Featuring a two-pronged implant design for superior pull-out strength.
- Available in two sizes to accommodate various surgical needs.
-

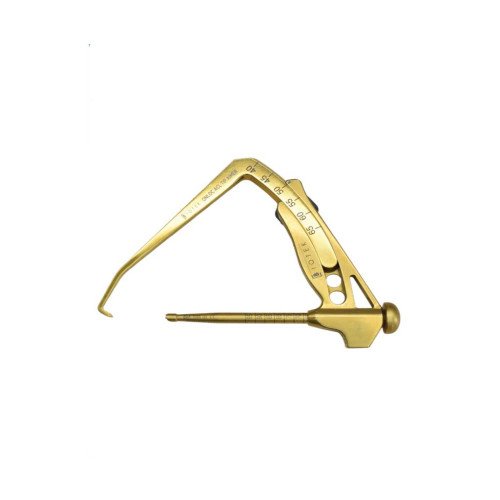

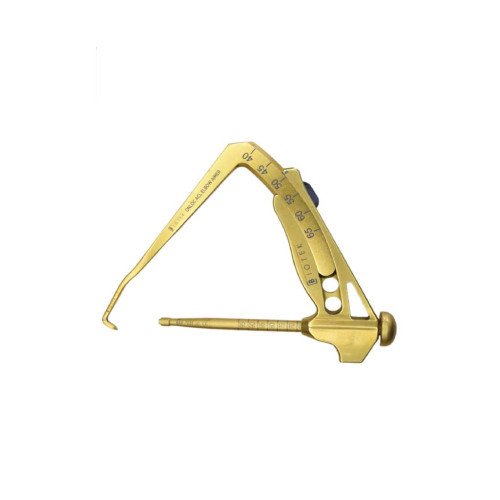

ONLoc® Drill Guide, a precision instrument tailored for cruciate reconstruction that adapts to each patient's unique anatomy, empowering surgeons with unparalleled flexibility, accuracy, and control. Compact in design for enhanced maneuverability and control, it comfortably fits within the surgeon's hand while accommodating the diverse spectrum of knee anatomies.
- Key features include:
-
Dovetail arm design.
-
Ergonomic guide handle custom-fitted for surgeon comfort.
-
Simple locking mechanism enabling one-handed operation.
-
Lightweight and compact construction for enhanced control.
-
Specially designed bullet for consistent and secure engagement with the cortex.
-
Rectangular guide arm cross-section for superior rigidity compared to round designs.
-
The ONLoc® Drill Guide System Set comprises:
-
ONLOC® Drill Handle: Engineered for effortless single-handed placement, providing maximum rigidity and accuracy.
-
ONLOC® ACL Tibial Aimer “Elbow design": Enables drilling to the inside angle of the aimer. Suitable for use with ACL remnant-preserving techniques.
-
ONLOC® ACL Tibial Aimer "Tip aimer design": Enables drilling to the tip of the aimer. Suitable for use with ACL remnant-preserving techniques.
-
ONLOC® ACL Foot Print Tibial Aimer: Enables drilling to the centre of the aimer footprint target. Suitable for when the ACL remnant is significantly debrided from the tibia.
-

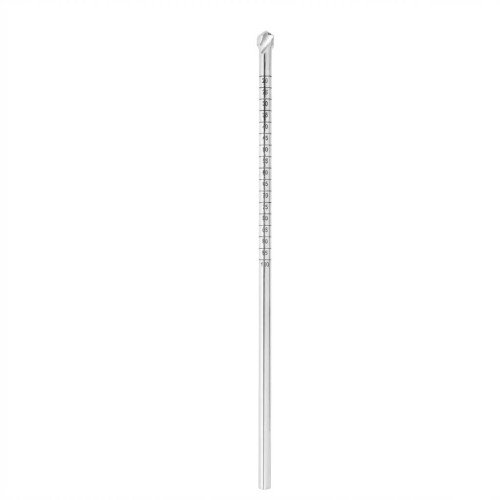

Ideal for arthroscopic cruciate ligament surgeries, allowing femoral tunnel reaming from inside-out while minimizing PCL injury risk.
-
Drill bit shaft features depth marks on three sides for straightforward bone tunnel depth identification.
-
Enables both open femoral tunnel preparation and in-line tunnel reaming for fixation procedures.
-
Head profile allows effortless withdrawal from bone tunnels.
-
Available in diameters spanning from 6mm to 12mm.
-

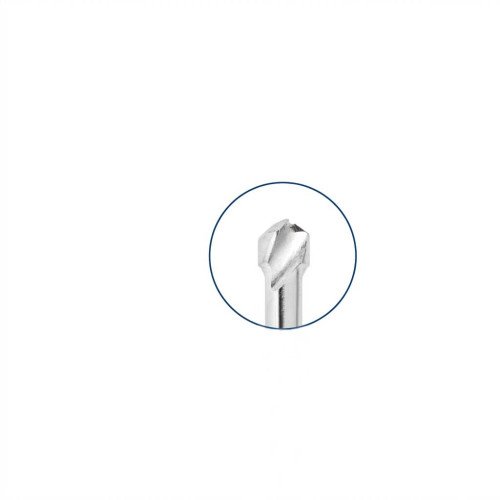

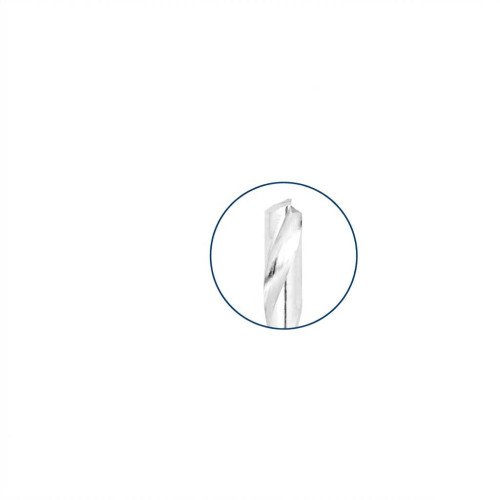

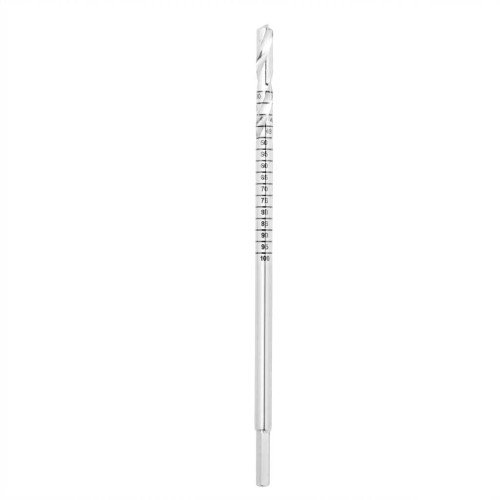

Essential for creating bone tunnels in ACL and PCL reconstruction surgeries.
-
Cannulated design compatible with a 2.4mm drill tip guide pin.
-
Features graduated depth marks on three sides for effortless bone tunnel depth identification.
-
Available in diameters spanning from 6mm to 12mm.
-

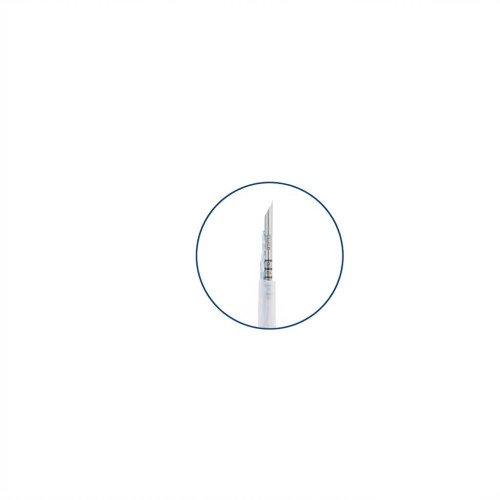

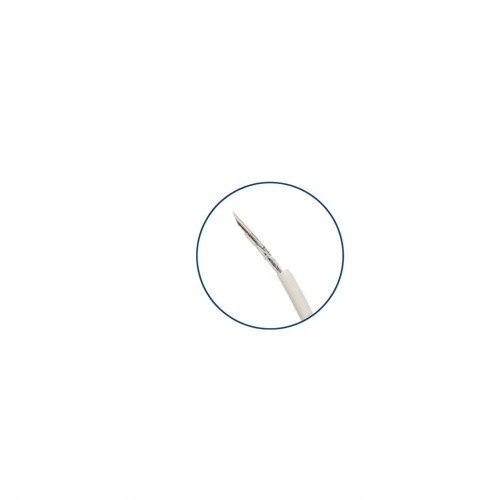

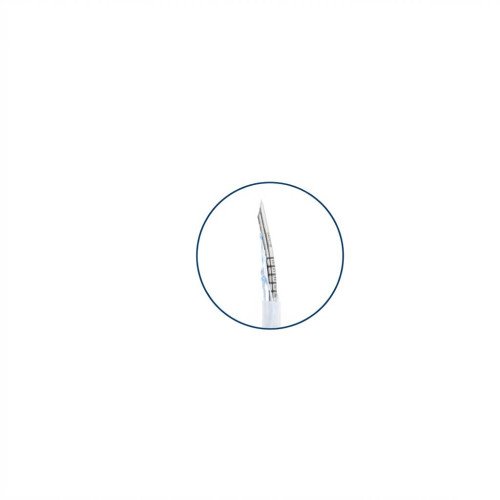

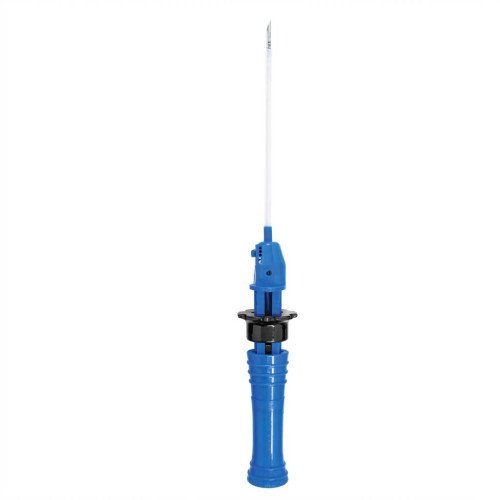

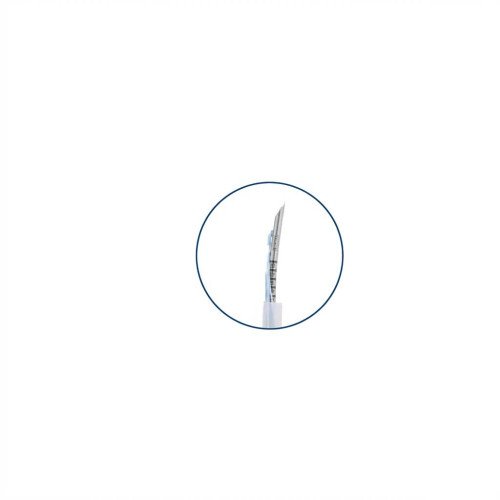

Introducing the BIOCINCH®-AI2 Meniscal Repair System, offering a robust 360º technique for comprehensive meniscal repair.
-
This system eliminates the limitations of inside-out and outside-in repair techniques, removing the need for intra-articular knot tying.
-
Surgeons gain the flexibility to place horizontal or vertical mattress sutures on the femoral or tibial surfaces of the meniscus, significantly reducing the risk to posterior neurovascular tissues.
-
BIOCINCH® AI2 comes with two preloaded non-absorbable implants: Len. 5.0mm x Dia. 1.2mm.
-
The BIOCINCH® Meniscal Repair Set has been designed to repair tears in the anterior, middle, and posterior zones of the meniscus, employing an "inside out" methodology.
-
Included are two straight meniscal repair needles, preloaded with size 0.7 flat tape length 50 cm.
-
Constructed from thin 1.1mm stainless steel, the meniscal repair needles boast robust properties, ensuring flexibility for easy passage through guide sleeves.
-
The tape, composed of UHMWPE material, offers ultra-high strength for reliable performance.
