MINI-VIM® | Ligament Anchor

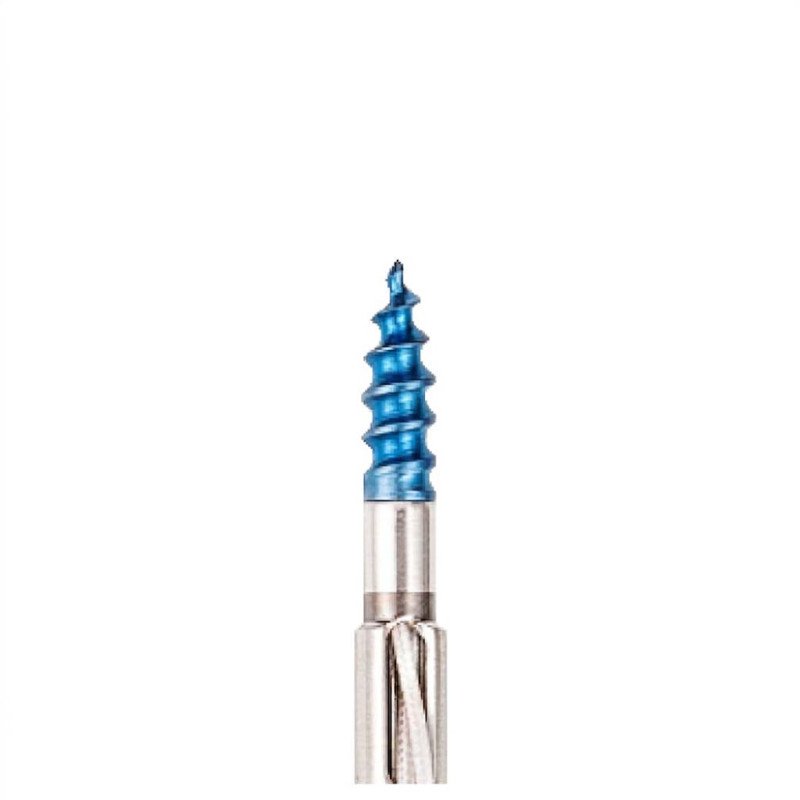

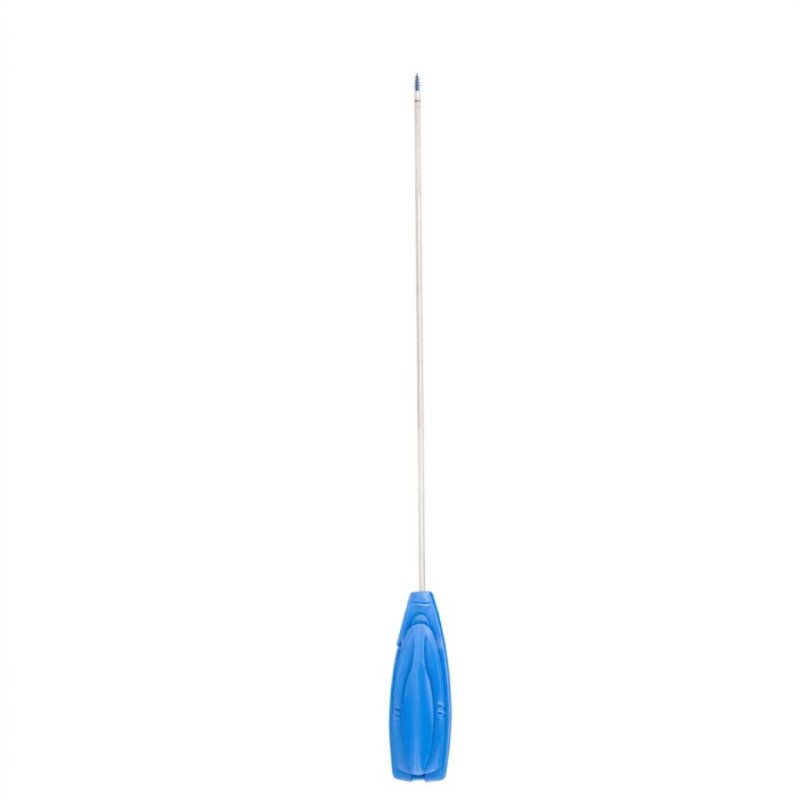

MINI-VIM® Ligament anchors, crafted from titanium, available in 2.8mm and 3.5mm diameters, preloaded with BIOFIBER #2 USP suture.
BIOFIBER® suture is a high-strength UHMWPE material which offers enhanced handling and knot security.
Suitable for SLAP and Bankart repairs.
MINI-VIM® Self-tapping anchors can be used without a pilot drill in most cases. For hard bone, optional pilot drills are available and recommended.
MINI-VIM® anchors are available in the following configurations: suture only and pre-loaded with needles.
Achieving an average pull-out strength of:
BAS-9001.28F – 129N
BAS-9040.28F – 129N

Product Category	Description
10423	MINI-VIM® Ligament Anchor, Titanium loaded with 2 pc Fiber with needle, Dia. 3.5mm
BAS-9001.28F	MINI-VIM® Ligament Anchor, Titanium loaded with 1 pc Fiber; Dia. 2.8mm
BAS-9040.28F	MINI-VIM® Ligament Anchor, Titanium, loaded with 1 pc Fiber with needle, Dia. 2.8mm
BAS-9031.35F	MINI-VIM® Ligament Anchor, Titanium, loaded with 1 pc Fiber, Dia. 3.5mm
BAS-9083.35F	MINI-VIM® Ligament Anchor, Titanium, loaded with 1 pc Fiber with needle, Dia. 3.5mm

Product Category	Description
BAS-9012	Spear (Two-pronged) for MINI-VIM® & MINI-VIM PK® Ligament Anchor – BAS-9001.28F & BAS-9086.28F
BAS-9109	Spear (Fishmouth) for MINI-VIM® & MINI-VIM PK® Ligament Anchor – BAS-9001.28F & BAS-9086.28F
BAS-9110	Spear (Two-pronged) for MINI-VIM® & MINI-VIM® II PK Ligament Anchor – BAS-9031.35F, BAS-9088.30F & BAS-9089.35F
BAS-9097	Spear (Fishmouth) for MINI-VIM® & MINI-VIM® II PK Ligament Anchor – BAS-9031.35F, BAS-9088.30F & BAS-9089.35F
BAS-9098	Trocar for Spear – BAS-9097 & BAS-9110
BAS-9013	Trocar for Spear – BAS-9012 & BAS-9109
BAS-9026	Drill bit, Dia. 2.2mm for MINI-VIM® Ligament Anchor BAS-9001.28F
BAS-9114	Drill bit, Dia.2.8mm for MINI-VIM® Ligament Anchor BAS-9031.35F
